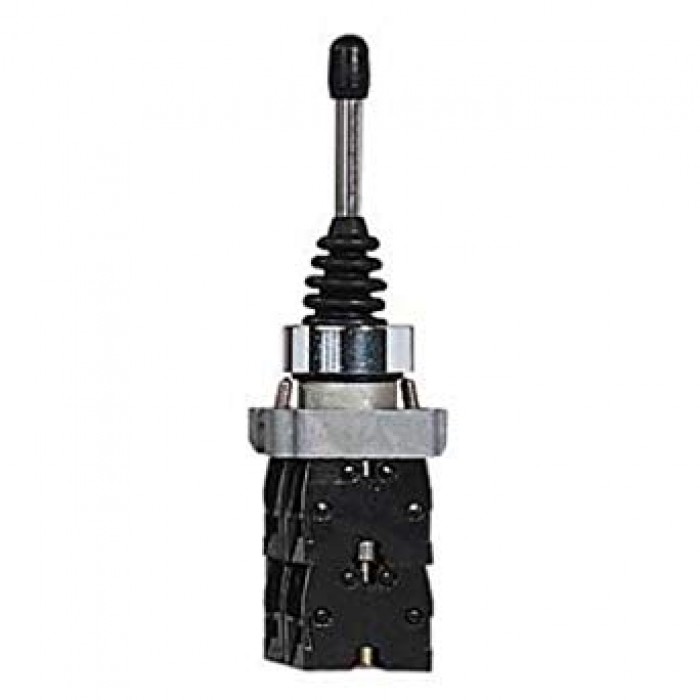

Joystick 4 pozitii retinere XD2-PA14 MINI 240VAC 6A SPST 1NO #37777

Descarca Fisa Produs
Joystick 4 pozitii retinere XD2-PA14 MINI 240VAC 6A SPST 1NO #37777
  • Preț cu TVA: 122,02 Lei

  • 100,84 Lei

Cantitate minimă de comandat pentru acest produs este de 1

Joystick 4 pozitii retinere XD2-PA14 MINI 240VAC 6A SPST 1NO #37777

model: XD2-PA14 mini
type: stay put
number of positions: 4 positions
contacts rated voltage: 240VAC/380VAC
contacts rated current: 6A/3A
electrical life: 30 000 cycles
operating temperature: from -25°C to +45°C
mounting hole diameter: Ф25mm
dimensions: 30x30x144mm
stem length: 73mm
protection grade: IP44
contacts configuration: SPST, 1NO for position
wiring terminals: screws
mounting: panel
contacts body material: bakelite
