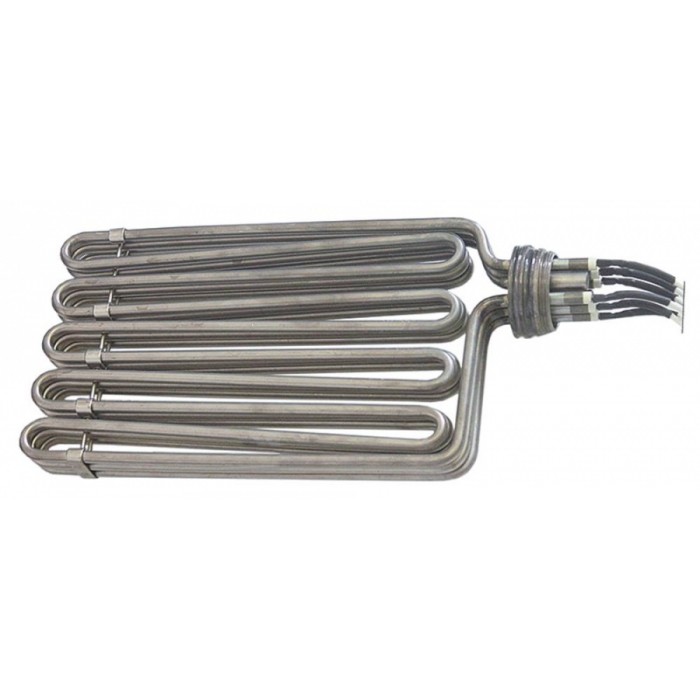

Rezistenta 12000W 230/400V 326x180x31mm #416825

power 12000W
voltage 230/400V
heating circuits 3
mounting position right
length 326mm
width 180mm
height 31mm
flange length 19,5mm
flange length 1 9,5mm
flange length 2 9,8mm
flange diameter 1 62mm
flange diameter 2 57mm
diameter thermostat sleeves 7,5mm
sensor screw connection 2x M10x1
position thermostat sleeve upper/lower
length 1 19mm
length 2 307mm
width 1 33mm
width 2 33mm
thread size M54x1.5
number of windings 5
tube diameter 8,5mm
cable length 490mm
mounting rotation flange
application immersion heater
connection length 60mm

Compatibil :
Giorik
Giorik electric deep fryer 15FE FRE7115
Giorik electric deep fryer 15FEC FRE7115C
Giorik electric deep fryer 215FE FRE7215
Giorik electric deep fryer 215FEC FRE7215C
